HVAC Coils
Sectional Coils
Tight mechanical room or limited space for a large HVAC coil in a service elevator? Don't let space restraints prevent you from replacing your HVAC coil.

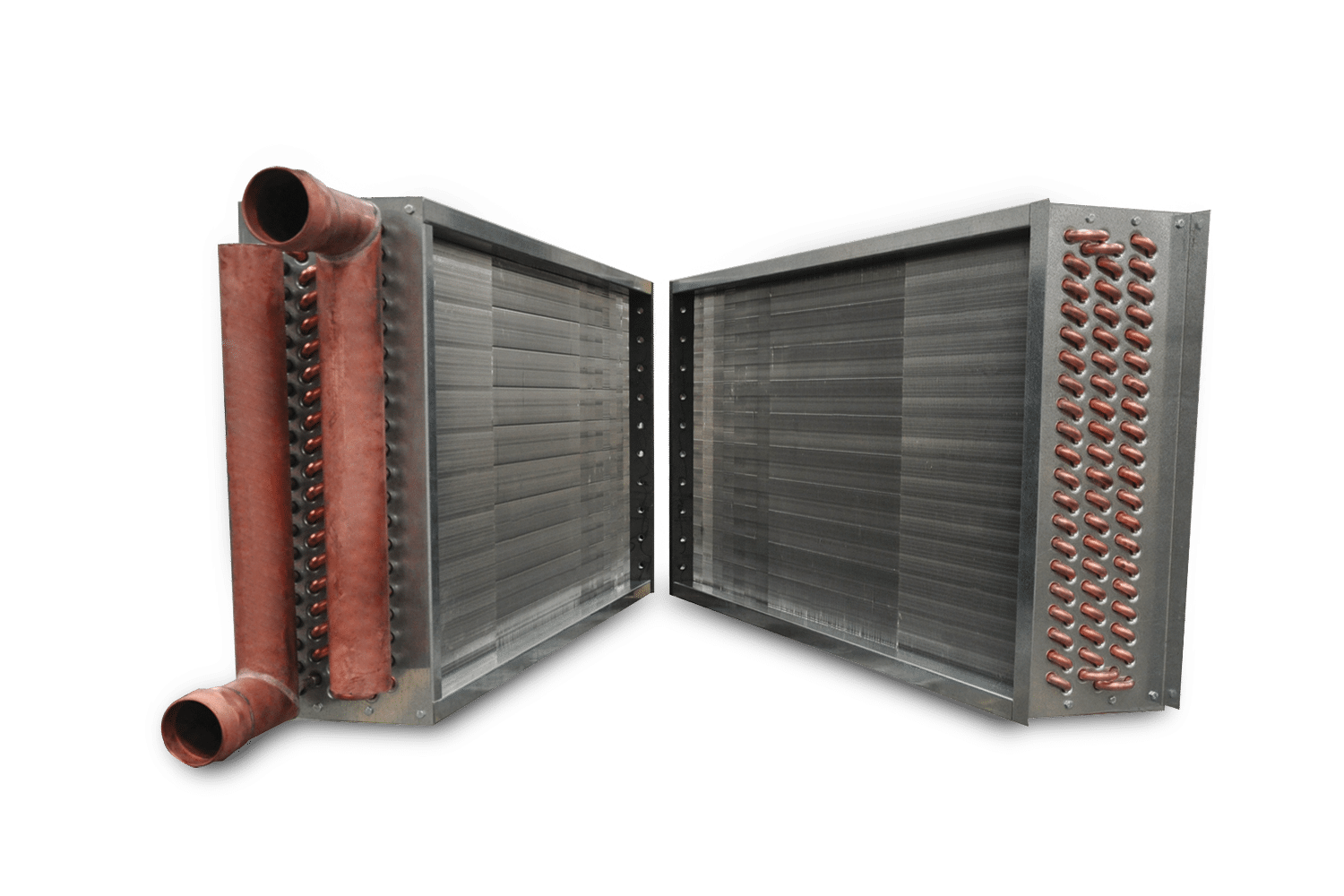

Sectional coils are manufactured into two modular pieces with heavy duty end plates and bolted together in the field.
Site Visits
Schedule a Free Site Visit
During our initial site visit, we’ll take measurements, learn about your complete system, diagnose your challenges and recommend a solution. If we don’t have an answer on the spot, we’ll research your need and follow up quickly with a recommendation.
Book a Site Visit
Our team can measure to guarantee dims, connections, casing, materials, access, and operating conditions for a perfect fit.
How to Measure a Coil
Blank coil drawings & how to measure a coil guide make it easy to record coil details for a quick order replacement coil.
Get a Quote Now
Already have a drawing, nameplate data, or dimensions? Skip straight to pricing. An engineer reviews every order.
HVAC Coils
OEM & Custom Replacement Sectional Coils
Tube Material
• Copper
• Cupro Nickel 90/10
• Carbon Steel
• 304 Stainless Steel
• 316 Stainless Steel
• Aluminum
Tube OD
• 1/2 Inch
• 3/8 Inch
• 5/8 Inch
• 1 Inch
Fin Materials
• Aluminum
• Copper
• 304 Stainless
• 316 Stainless
• Carbon Steel
• Cupro-Nickel 90/10
Header Materials
• Type L Copper
• Type K Copper
• Carbon Steel (Schedule 40 or 80)
• Cupro-Nickel (Schedule 40)
• 304 Stainless (Schedule 40 or 80)
• 316 Stainless (Schedule 40 or 80)
• Aluminum (Schedule 40)
Casing Materials
• Aluminum (.063, .090, .100, .125)
• Carbon Steel (10,12,14,16ga)
• Copper (.0647 (48oz)
• Copper (.091 (67oz)
• Copper (.125 (96oz)
• Galvanized Steel (8,10,12,14,16,18,20ga)
• 304 Stainless Steel (10,12,14,16,18,20ga)
• 316 Stainless Steel (10,12,14,16,18,20ga)
Available Coil Coatings:
• Epoxy Polmer (E-Coat) with UV Top Coat
• Epoxy Polmer (E-Coat)
• Baked on Phenolic
• Finkote 2
• Finkote 2 UV Top Coat
• FinkoteCc
• FinkoteHp
• FinkoteZx
• Heresite
• Heresite UV
• ElectroFin
• ElectroFin UV
• Blygold Anti-Corrosive
• Blygold Anti-Microbial
• Black Poly Coated Fin
• Iridite
• Other Options Available Upon Request
Need a replacement HVAC coil ASAP? We can help! We offer 15, 10, and 2-day expedite options. Give us a call at (610) 783-1136 for availability and pricing.
Certified in accordance with AHRI Force-Circulation Air-Cooling and Air-Heating Coils Certification Program which is based on AHRI Standard 410 within the Range of Standard Rating Conditions listed in Table 1 of the Standard.
Certified units may be found in the AHRI Directory at www.ahridirectory.com
Get Started Today
Ready to upgrade your heating and cooling system with our reliable HVAC coils? Contact us today to discuss your requirements, or place an order. We’re here to help you find the perfect heating solution for your needs.
