Heat Exchanger & Coil Measuring Templates

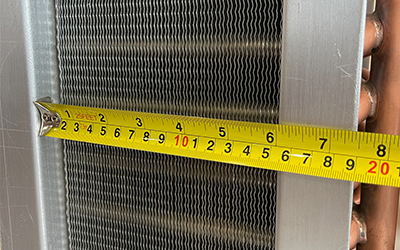

Need to replace a coil, tube bundle, or heat exchanger but not sure where to start? Our free measuring templates walk you through every dimension you’ll need to get a fast, accurate quote from Cooney Technologies. Whether you’re a contractor, facility manager, or engineer, these templates help you avoid costly mistakes and ensure your new equipment fits the first time.

Unlock access to:

• Printable HVAC coil measurement templates
• Templates for tube bundles and shell-and-tube heat exchangers
• A how-to video walking you through the process

Custom coils and heat exchangers are only as good as the measurements you give us. These templates help you get it right.
