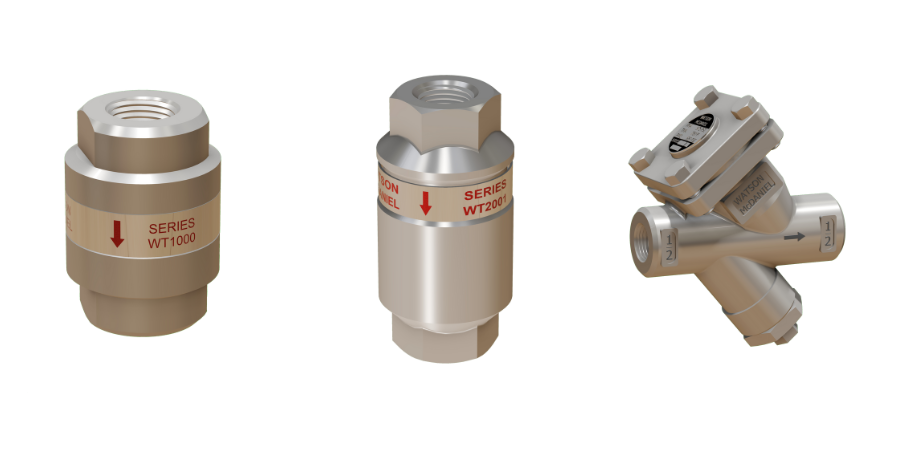

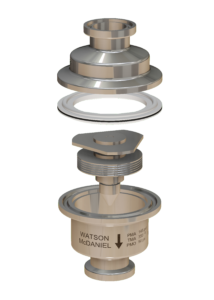

Thermostatic Steam Traps

These are extremely energy-efficient steam traps and excel at discharging air, allowing steam to enter the system quickly during startup. Models are available in stainless and alloy steel for Drip, Tracing, and medium-sized Process applications, handling pressures up to 650 psig.

• Heavy-duty, industrial-purpose stainless steel thermal element controls condensate discharge based on temperature
• Backs up some condensate on the inlet side, reducing flash steam into return piping
• Versatile, handling both drip loads and small-to-medium batch process loads
• Can be mounted in any position and self-draining when installed vertically
• Operates over a wide pressure range, unlike F&T and Inverted Bucket traps with various orifice sizes
• Limited superheat capability
• Excellent Option for Drip Applications, Especially When Flash Steam is of Concern

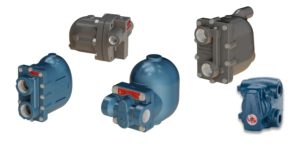

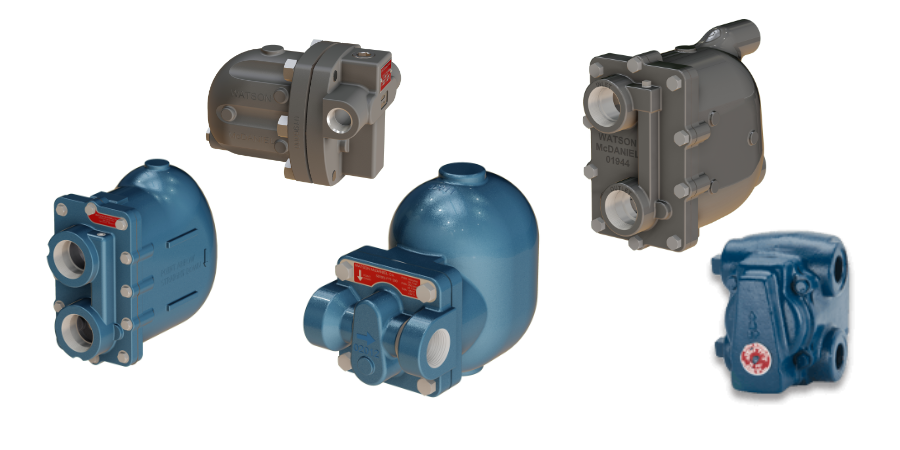

Float and Thermostatic Steam Traps

At Cooney Coil & Energy we proudly stock Wason McDaniel Float & Thermostatic (F&T) Steam Traps. These powerhouses are designed to handle pressures up to 450 psig, making them an ideal choice for the majority of process applications.

The F&T Steam Traps operate on a dual mechanism that sets them apart from conventional solutions. They feature a float-operated valve that guarantees continuous discharge of condensate. At the same time, they're equipped with a thermostatic air vent, responsible for discharging air efficiently.

With choices of body materials, including Cast Iron, Ductile Iron, Cast Steel, and Stainless Steel, you can select the one that best suits your needs. Not only are these traps versatile, but they also excel in drip applications on pressures 30 psig & below.

Don't settle for subpar performance when it comes to your steam system. Choose F&T Steam Traps from Cooney Coil & Energy, and experience a significant boost in efficiency and reliability. It's time to turn to a solution that truly understands the demands of your process applications.

• Mechanical, float-operated valve rises when condensate enters and closes for steam
• Thermal Element for Air Removal
• Fast-responding to Pressure & Load Changes, Continuous Discharge
• Primary Choice for Process Applications, but Excellent for Drip Applications up to 30 psig
• Common Float and Thermostatic models Watson WFT-015, WFT-30, FTT-065, FTT-145, FTT-145, FTT,225, FTT-300. A common replacement for Spirax Sarco model series FT-15, FT-30, FT-14.

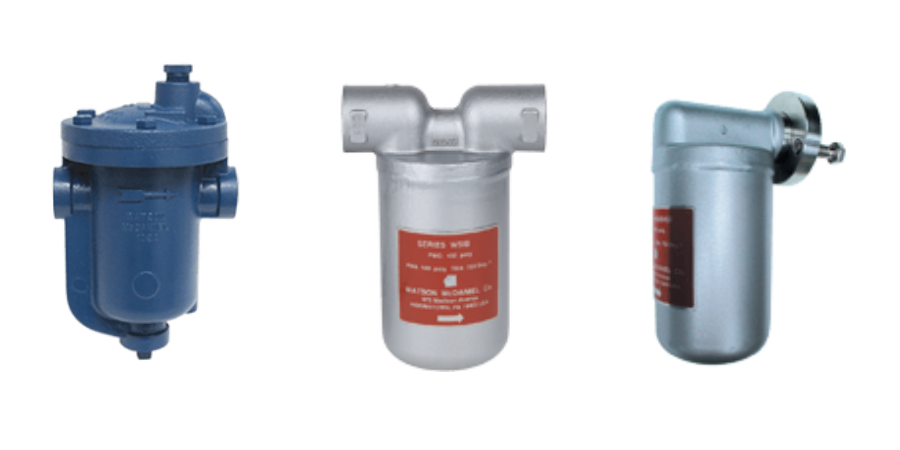

Inverted Bucket Steam Traps

• Mechanical-style Trap Using an Inverted Bucket as a Float Device to Control Opening & Closing of Plug & Seat
• Rugged & Simple
• Top-Mounted Orifice
• Not Self-draining – Can Freeze and Damage Body or Internal Components
• Not Self-Priming – Can Lose Prime When Conditions Change Rapidly
• Held Closed When Over-Pressurized(select proper orifice)
• Single Position Installation
• Ideal for Drip Applications on Systems Containing Excessive Pipe Scale & Debris

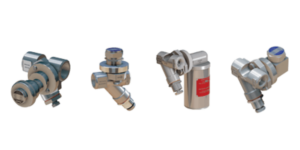

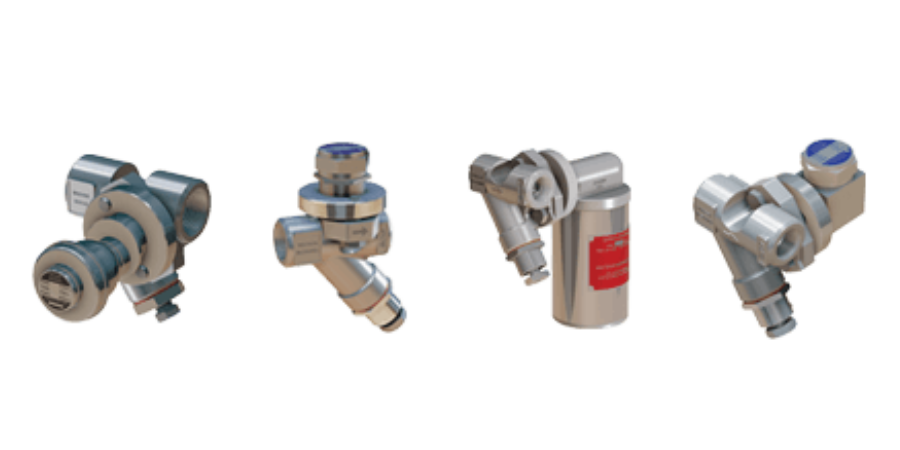

Universal Style Steam Traps

Universal Steam Traps are more than just a quick-fix solution. They're a revolutionary approach to managing steam systems, designed with the latest technology to retrofit seamlessly onto other manufacturer connectors. This isn't just about replacement; it's about optimization, enhancing efficiency, and saving you valuable time.

Whether you're dealing with steam supply lines, tracing, or small process applications, our Universal Steam Traps adapt to your needs. They've been proven effective in diverse environments, from universities to hospitals, chemical plants to petrochemical refineries, and even paper mills.

The added bonus? Your maintenance crew will be singing praises. With our Universal Steam Traps, you're investing in a simplified, economical maintenance program that keeps your team satisfied and your operations running smoothly.

• Reduce Replacement Time
• Retrofit onto Other Manufacture Connectors
• Optimize Trap Selection

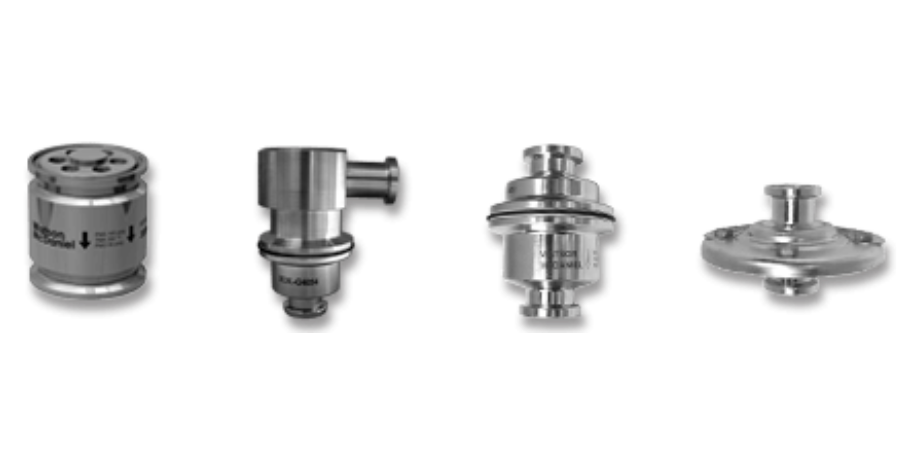

Clean Steam Steam Traps

Cooney Coil & Energy offers Watson McDaniel traps fabricated from polished 316SS, ideal for clean or sanitary steam applications. Primarily utilized in the Pharmaceutical and Food and Beverage industries, these traps meet the highest standards of cleanliness and efficiency. With our extensive experience in the pharmaceutical sector, we understand your unique requirements. Get in touch with us today to explore how we can serve your needs better.

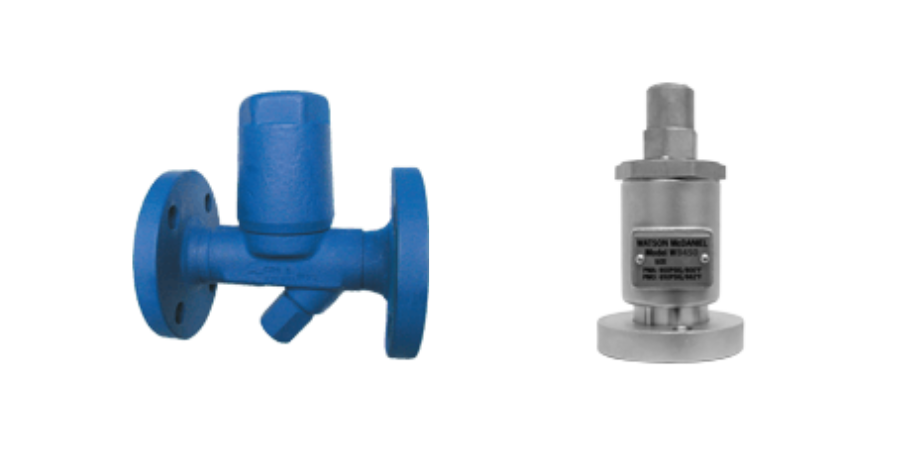

Bi-Metallic Steam Traps

Bi-Metallic Steam Traps are versatile tools ideal for steam tracing, steam main drips, and non-critical process equipment. These traps are also suitable for superheated steam applications or outdoor uses in freezing conditions. Available in various sizes and capable of handling pressures up to 2,260 PSI, the WPN Series Traps offer flexibility and robustness in a wide range of industrial settings.
