Condensate Pumps
In today’s high-demand industrial environments, the right condensate recovery solutions can make the difference between an efficient, cost-effective operation and one that constantly struggles with energy loss and downtime. That’s why Cooney Coils & Energy is proud to be a stocking distributor for Watson McDaniel, a leader in steam system solutions.
American Made Steam Traps · Stocking Distributor · Quick Delivery

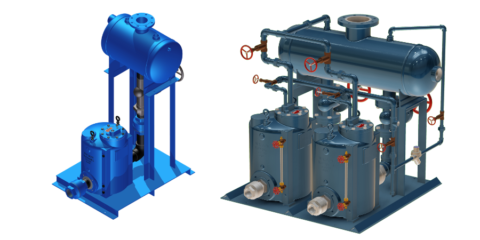

Packaged Condensate Pump Skids
Introducing Simplex, Duplex, and Triplex packaged systems - they're not just pumps, they're game-changers! These systems use steam power to pump condensate where it belongs.
Each of these systems comes with stand-alone pumps and check valves. They also include a vented receiver tank, all set up on a strong steel base and frame. This isn't just a bunch of parts thrown together - it's a well-integrated, high-performing system.
With a Complete PMP system, you get everything you need in one place. It's time to leave those outdated methods behind. Step up to the power of steam with our Simplex, Duplex, and Triplex packaged condensate systems. Don't wait - the future of efficient condensate return is here, and it's waiting for you!

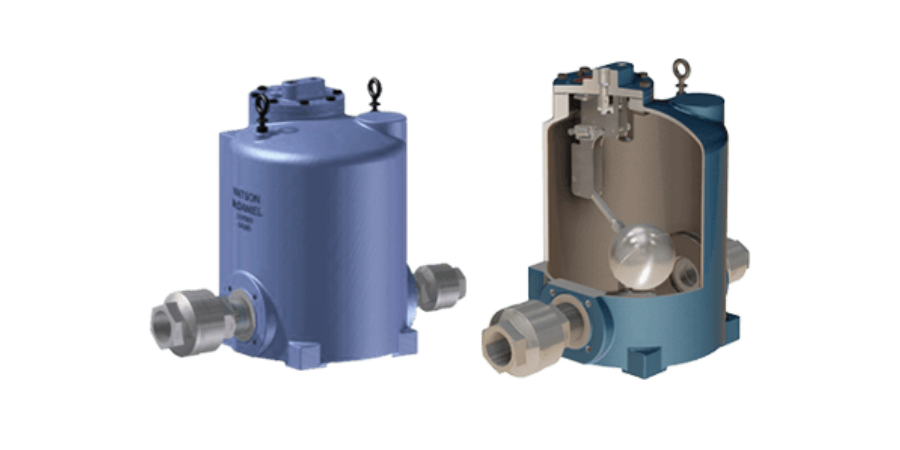

Pressure Motive Pumps (PMPs)
Pressure Motive Pumps (PMPs) are pressure-driven pumps that return condensate back to the boiler room. They use steam pressure as the driving force.
Key Features
-
Pump Units: PMPs can be provided as individual pump units, which include a pump tank, the internal pump mechanism, and a set of inlet and outlet check valves.
-
Packaged System: Alternatively, they can be supplied as a packaged system that also includes a vented receiver mounted on a common base.
Types of Pressure Motive Pumps
- PMPC (Ductile Iron): Offers significant corrosion resistance to condensate when compared to carbon steel.
- PMPNT (Ductile Iron or Stainless Steel - Low-Profile): Suitable for lower-capacity applications.
- PMPF (Fabricated Carbon Steel): Often required by code in Chemical and Petro-Chemical industries.
- PMPSS (304L Stainless Steel - Corrosion Resistant): Can replace fabricated carbon steel tanks for extended life or when Stainless Steel is required.
- PMPBP (Carbon Steel - High-Capacity): Ideal for applications requiring large transfer rates of condensate or other liquids.
Each type of PMP has its unique advantages and is designed for specific applications, offering flexibility and efficiency in managing condensate in various industrial settings.

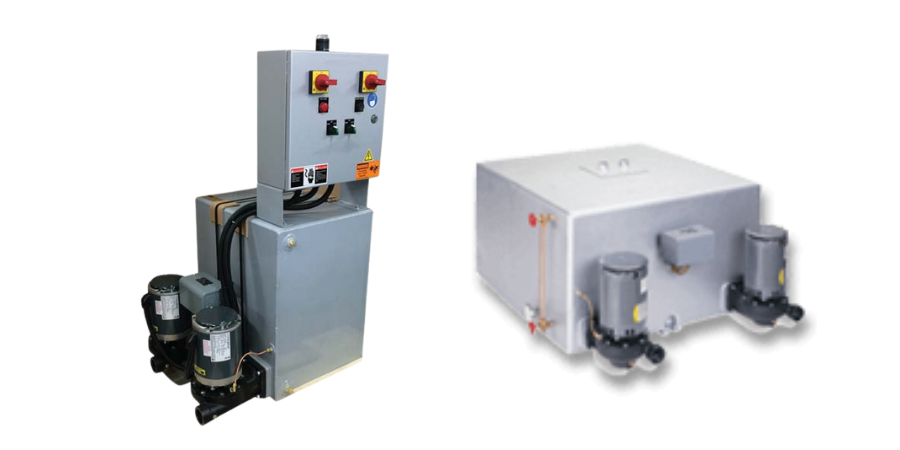

Electric Condensate Pumps
Electric condensate pumps are vital components in low-pressure steam heating systems. They collect and rapidly return condensate to the boiler feed unit, enhancing the efficiency of the system. Their operation is dictated by the water level in the receiver.

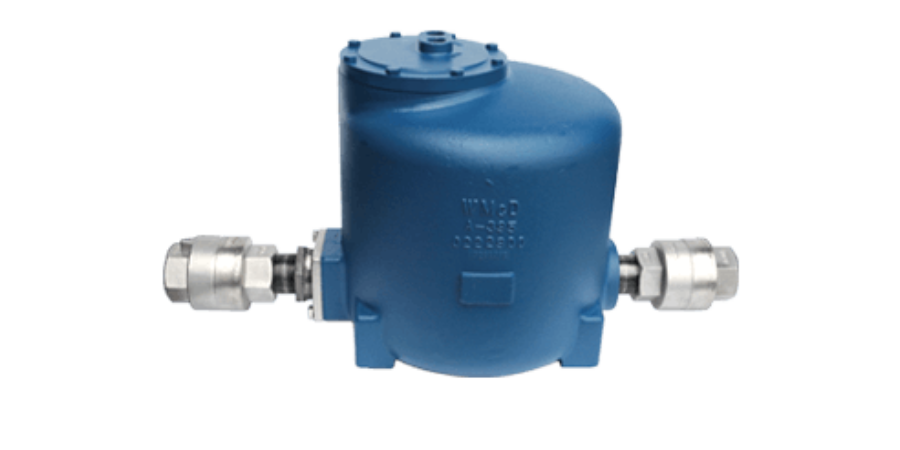

Steam Pump Trap Combo
In the world of steam systems, even the smallest components can make a significant impact. One such component is the pressure motive pump, a crucial element in maintaining the efficiency and reliability of your system. That's where Watson McDaniel's PMPT low-profile pressure motive pump comes into play.
Key Features
- Low-profile design for draining equipment close to the floor
- Patented "Snap-Assure" Mechanism for longer pump life
- Removable internal mechanism from the top while still piped in line
- Heat-treated stainless steel parts and dual compression springs made from Inconel-X-750
Optional Add-Ons
- Horizontal pipe reservoir
- Motive and vent piping
- Additional components like steam trap, strainer, and regulator
- Packaged systems with reservoir, base, and skid
- Gauge Glass, Insulation Jacket, and ASME Code Stamp available
- Steam Summary – Our short guide to steam trap, pressure reducing valves and condensate recovery pumps.
- Watson Cross Reference Guide – Looking for Spirax Sarco replacement parts? Use our guide to see what model you’ll need from Watson McDaniel
- Watson McDaniel Condensed Catalog
- View the entire Watson McDaniel Catalog
Steam Energy Audit
Steam Trap Survey & System Audit
Plugged, leaking, or blowing steam traps can cost thousands of dollars in lost energy every year. Detect any waste of energy, efficiency, and dollars with a steam trap survey from Cooney Technologies.
Available in Philadelphia, Pennsylvania, New Jersey, and Delaware.
American Made steam traps
Distributor of Watson McDaniel Steam Traps
Cooney Technologies supplies Watson McDaniel steam traps, condensate pumps, and steam specialties to facilities and contractors nationwide. As a stocking Watson McDaniel distributor, we can provide same-day pickup or delivery on many items, helping you get heat, condensate, and steam systems back under control faster.
Need help sizing a condensate pump replacement?
Send us your condensate pump details, or request a site visit and we’ll help confirm fit before you order.
