Replacment hvac COils
Steam Coils
Distributing "Non-Freeze" | Standard Steam
Custom and replacement steam and steam distributing coils built to fit your system, match your performance needs, and keep your project moving.
Replace It Right. Leave it Better.
Built around your unit, not pulled from a catalog
Steam coils fail for a reason. The replacement should do more than match the old part, it should fit the unit, support proper steam and condensate flow, and hold up to the conditions the coil is running in today.
Whether you have a drawing, a model number, or an existing coil that needs to be measured, our team helps verify the details before the coil is sent to production.

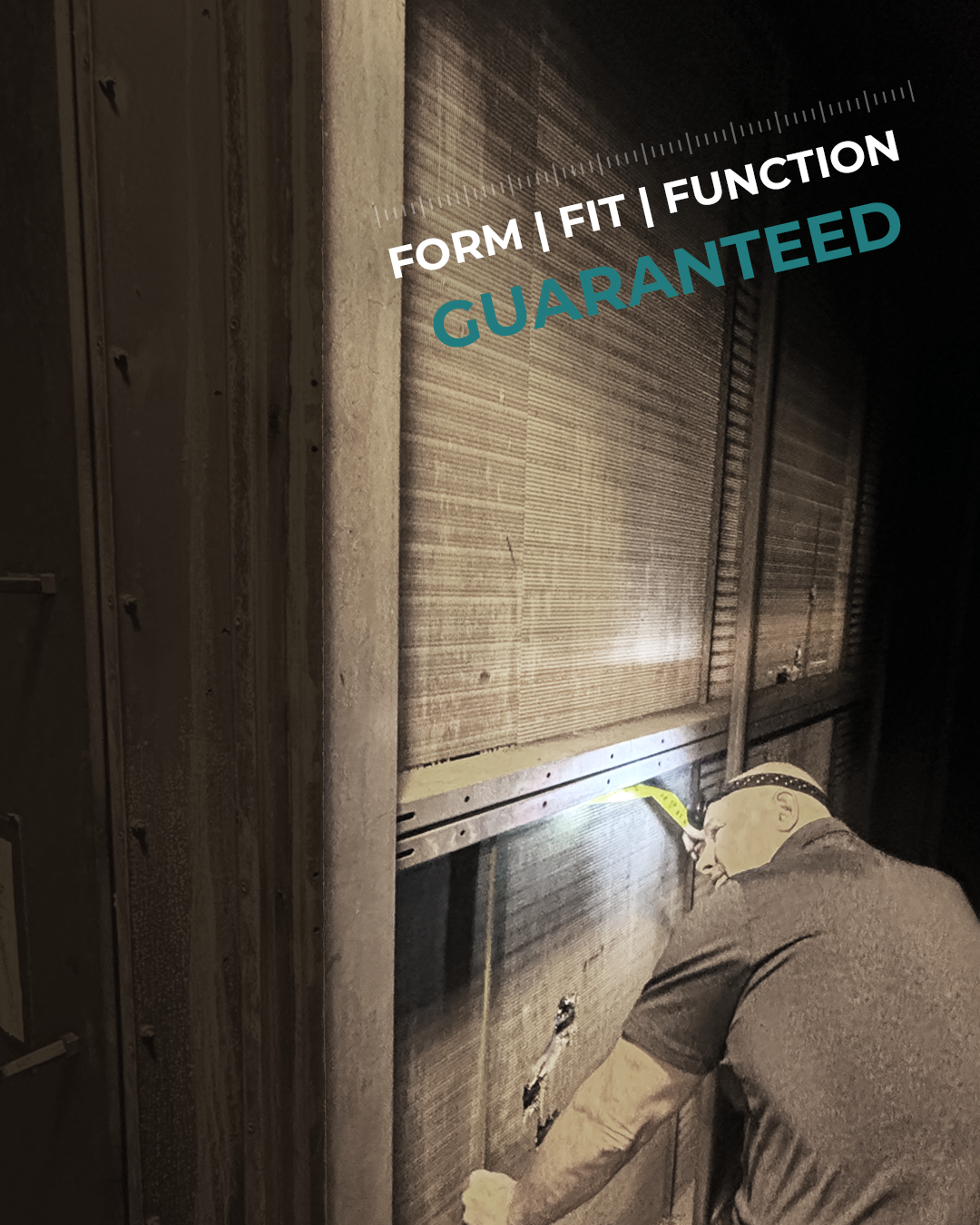

Site Visits
Our team can help confirm dimensions, connections, casing, materials, access, and operating conditions before production starts.
Blank Coil Templates
Blank coil drawings & how to measure a coil guide make it easy to record coil details for a quick order replacement coil.
Coils Options
Standard & Custom Coil Configurations
Chilled water coils are available in standard and custom builds for commercial and industrial HVAC systems.

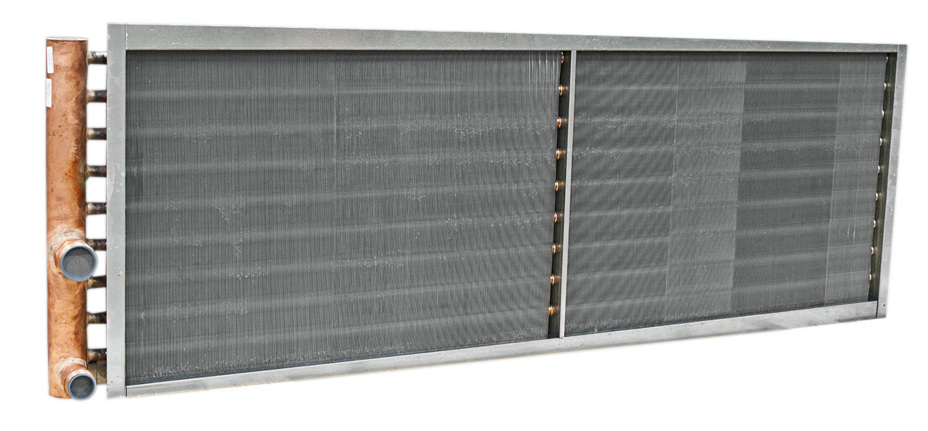

Steam | Steam Distributing
| Tube Diameter | Aluminum | Copper | Cupro-Nickel 90/10 | Carbon Steel |
Stainless Steel 304 & 316 |
| 5/8" | 🔵 | 🔵 | 🔵 | 🔵 | |
| 7/8" | 🔵 | 🔵 | 🔵 | 🔵 | |
| 1" | 🔵 | 🔵 | 🔵 | 🔵 |
Steam | Steam Distributing
| Tube Diameter | Aluminum | Copper | Cupro-Nickel 90/10 | Carbon Steel | Stainless Steel 304 & 316 |
| 5/8" | 🔵 | 🔵 | 🔵 | 🔵 | 🔵 |
| 7/8" | 🔵 | 🔵 | 🔵 | 🔵 | 🔵 |
| 1" | 🔵 | 🔵 | 🔵 | 🔵 | 🔵 |
• Type L Copper
• Type K Copper
• Carbon Steel (Schedule 40 or 80)
• Cupro-Nickel (Schedule 40)
• 304 Stainless (Schedule 40 or 80)
• 316 Stainless (Schedule 40 or 80)
• Aluminum (Schedule 40)
• Aluminum (.063, .090, .100, .125)
• Carbon Steel (10,12,14,16ga)
• Copper (.0647 (48oz)
• Copper (.091 (67oz)
• Copper (.125 (96oz)
• Galvanized Steel (8,10,12,14,16,18,20ga)
• 304 Stainless Steel (10,12,14,16,18,20ga)
• 316 Stainless Steel (10,12,14,16,18,20ga)
Coil coatings can help to extend the lifespan of your coil, while improving clean-ability and performance. Coated coils are ideal for protecting coils in corrosive environments and coils with high UV exposure such as pharmaceutical and medical facilities, industrial manufacturing plants, and coastal environments.
• Epoxy Polmer (E-Coat) with UV Top Coat
• Epoxy Polmer (E-Coat)
• Baked on Phenolic
• Finkote 2
• Finkote 2 UV Top Coat
• FinkoteCc
• FinkoteHp
• FinkoteZx
• Heresite
• Heresite UV
• ElectroFin
• ElectroFin UV
• Blygold Anti-Corrosive
• Blygold Anti-Microbial
• Black Poly Coated Fin
• Iridite
• More Options Available Upon Request

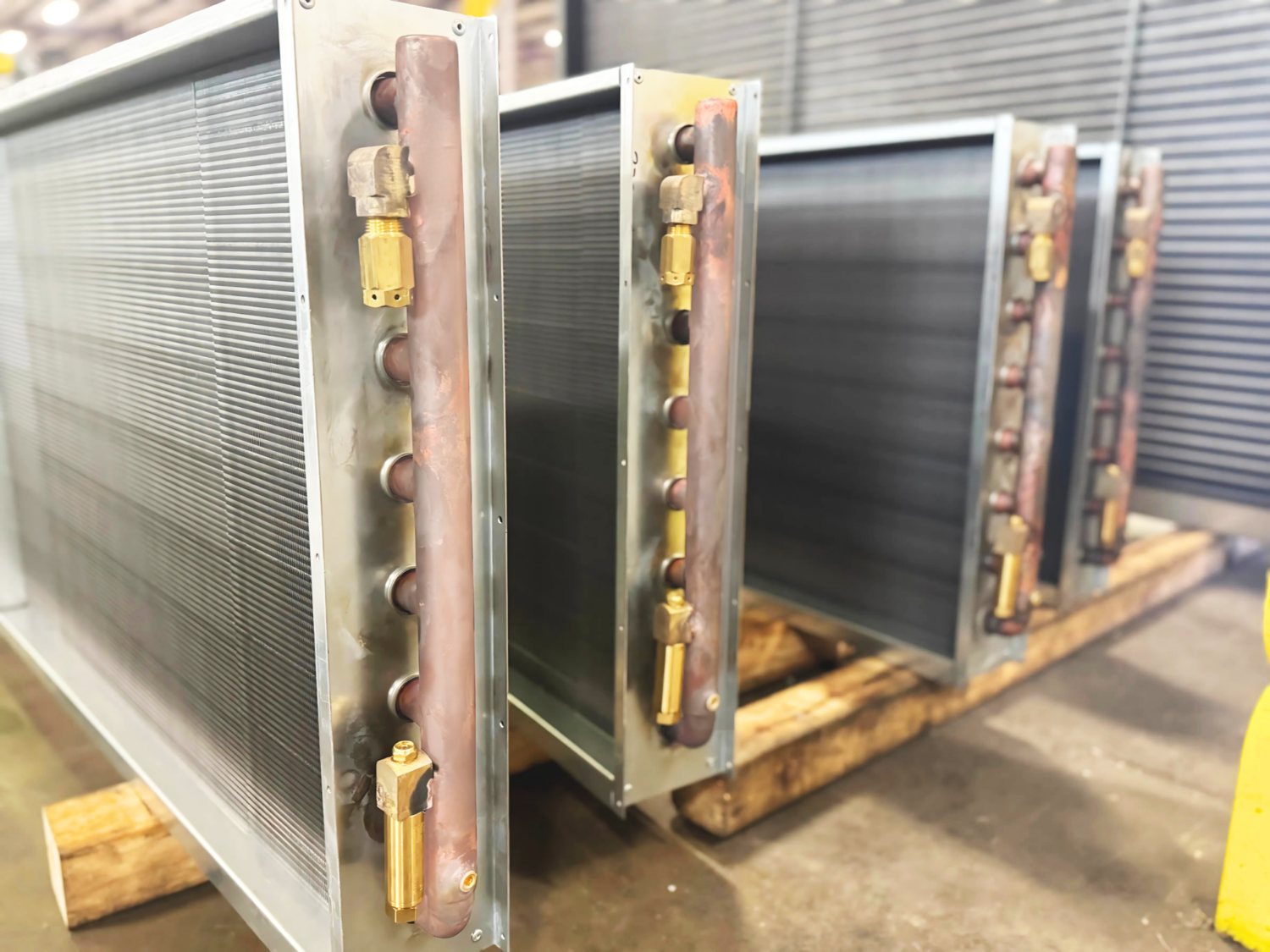

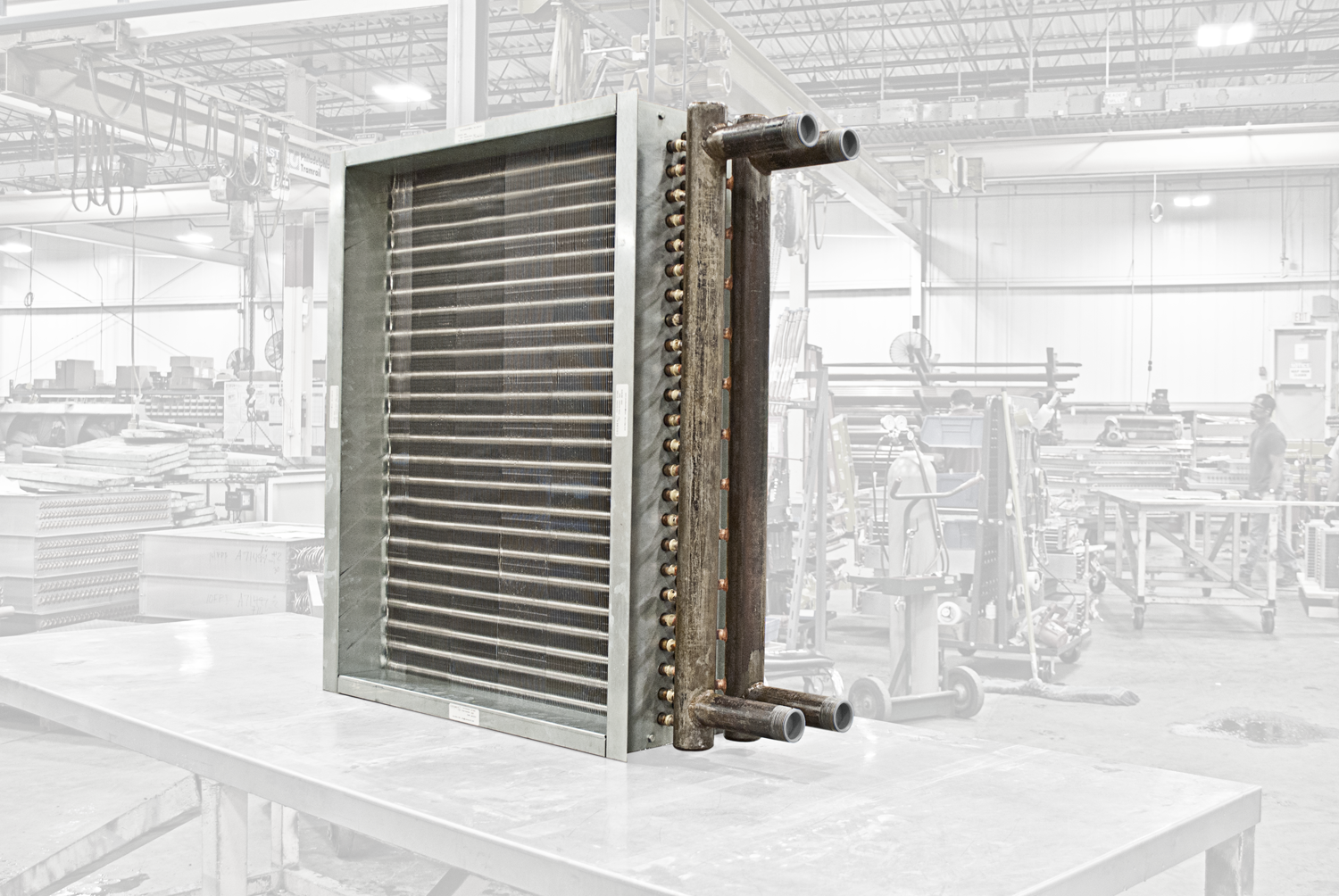

Built for the Steam Coil Replacements
Options & Upgrades for Your Steam System
If the original steam coil has been repaired or replaced more than once, the same design may not be the right answer anymore.
- Added coil freeze protection
- Header, casing, and material upgrades for demanding steam environments
- Pitched casings for effective condensate removal
- Connection changes and orientation changes
- 15, 10, and 2-day expedite options when available
Why Cooney Technologies
Support from People Who Know Coils
AVailable upgrade
Need Freeze Protection?
Steam Distributing coils are available with Freeze Block® technology for applications where coil freezing is a concern. Freeze Block is designed to allow a controlled volume of fluid to drain during a freeze event, helping protect the coil from rupture.
Need help replacing a Steam coil?
Send us your coil details, or request a site visit and we’ll help confirm the right replacement before it is built.
